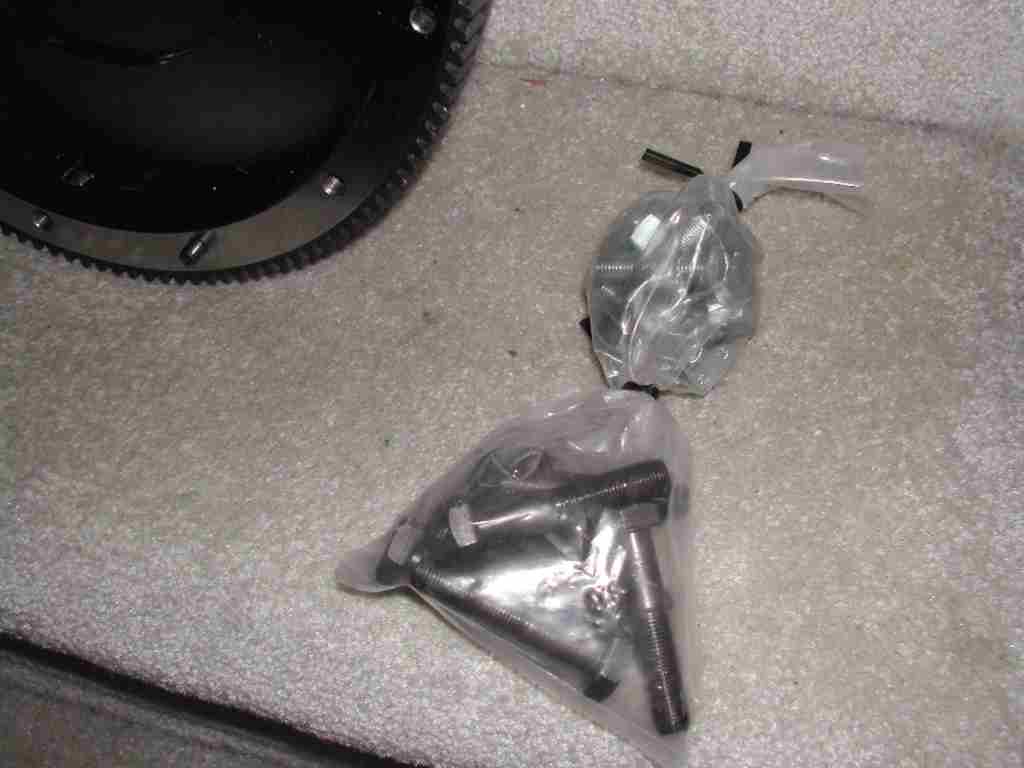

KEP provided you with a bag of bolts for the adapter and flywheel. | |
 |

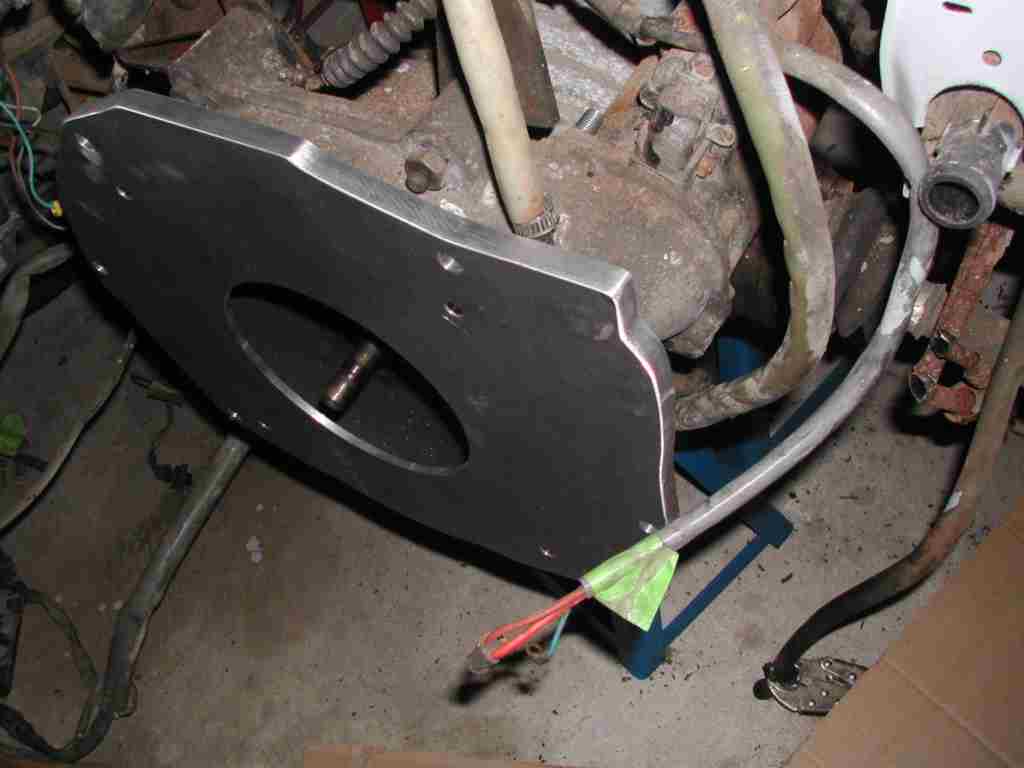

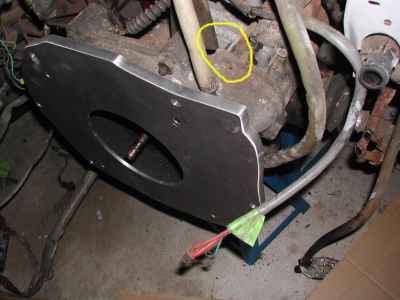

I test fitted the adapter plate. It is a perfect fit. KEP do an excellent job of machining these things. The yellow circle shows my looming problem - which I did not know about yet. I should not have used the KEP provided stud. The nut would not go on it because it interfered with the starter housing. |
|
 |

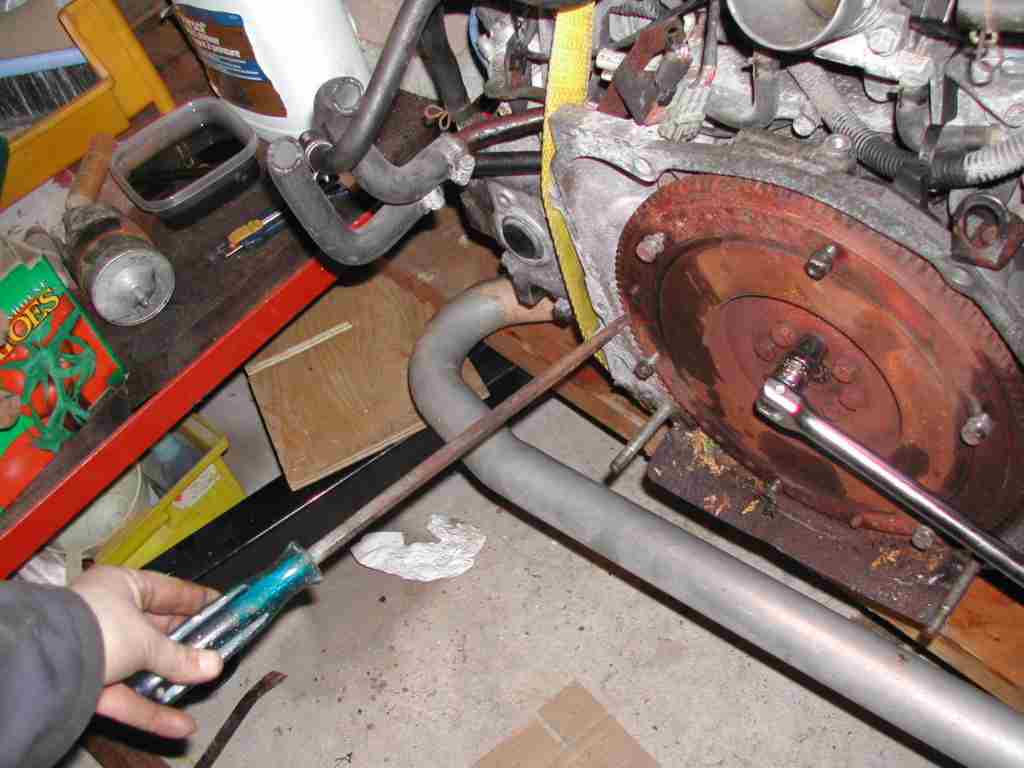

Taking off the original Subaru flywheel. I jammed my super-duper screwdriver to hold it in place. |
|
 |

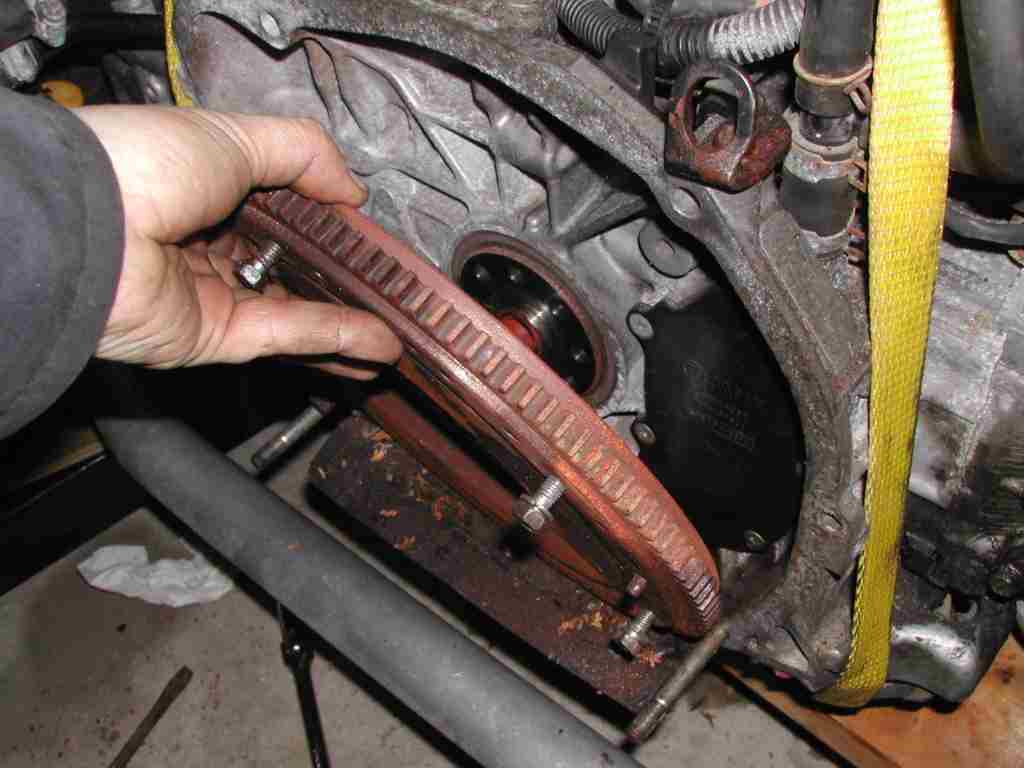

Off it comes. | |
 |

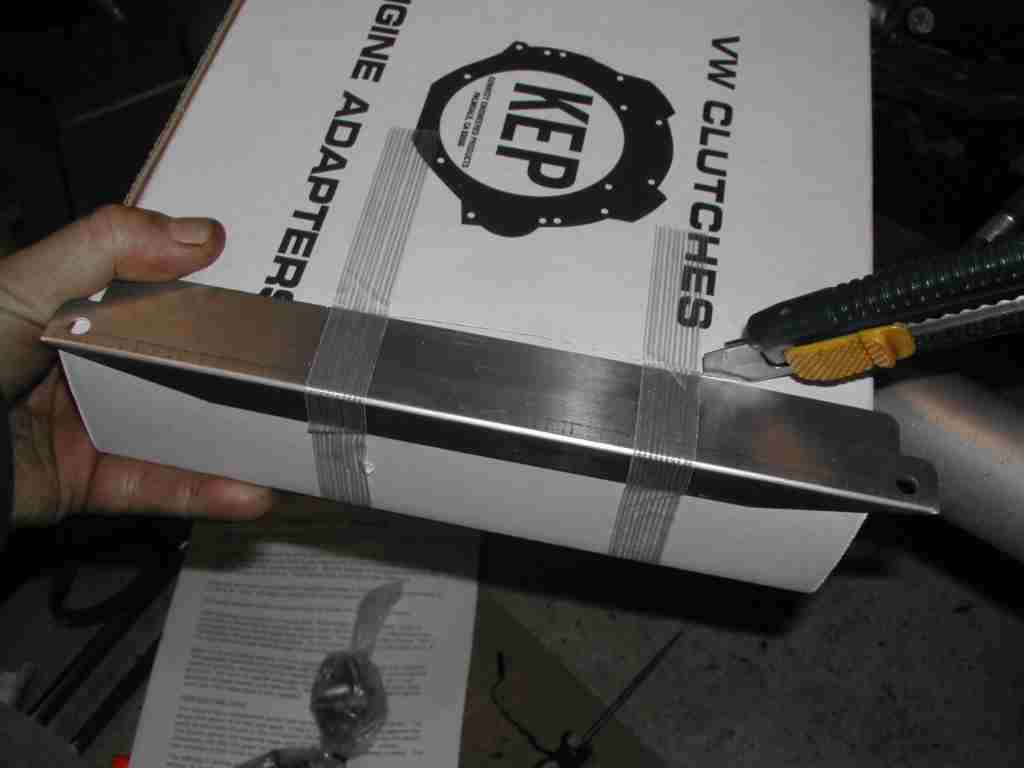

KEP provides a dust shield for the bottom of the new flywheel. | |
