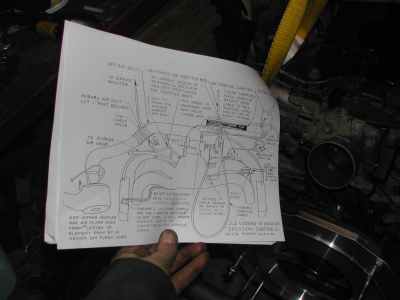

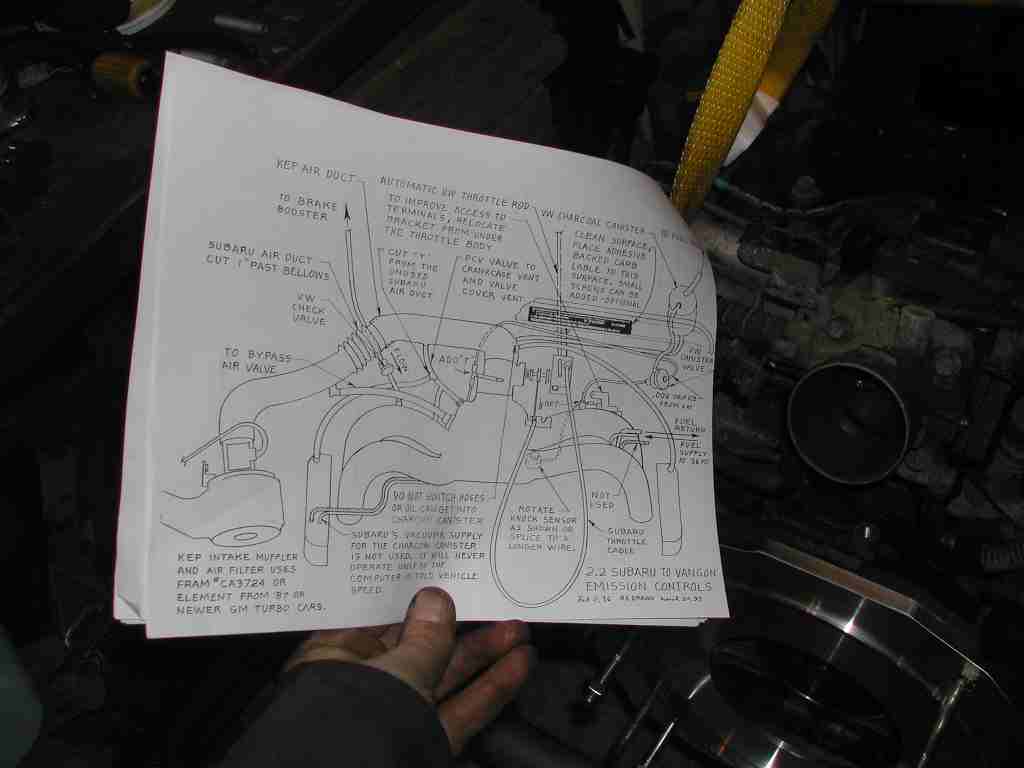

The KEP provided diagram is a bit of a challenge to understand at first. Their diagram looks at the engine from back to front. I like to work with the engine front to back because that is the way I have set it up to work on it. |
|
 |

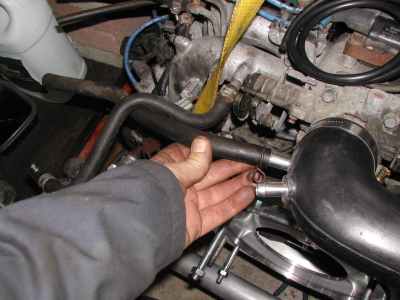

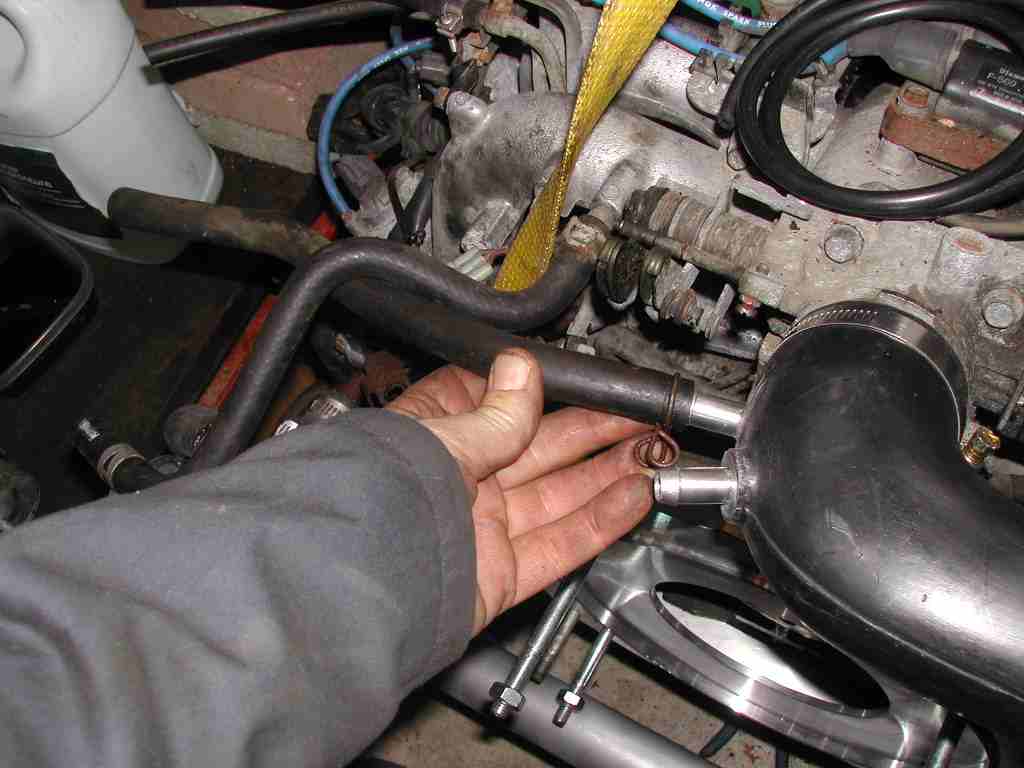

Once the KEP intake stuff is in place the easiest connection is the passenger side valve cover ventilation. | |
 |

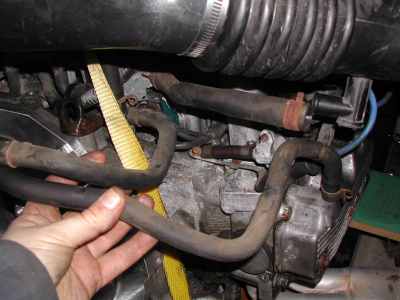

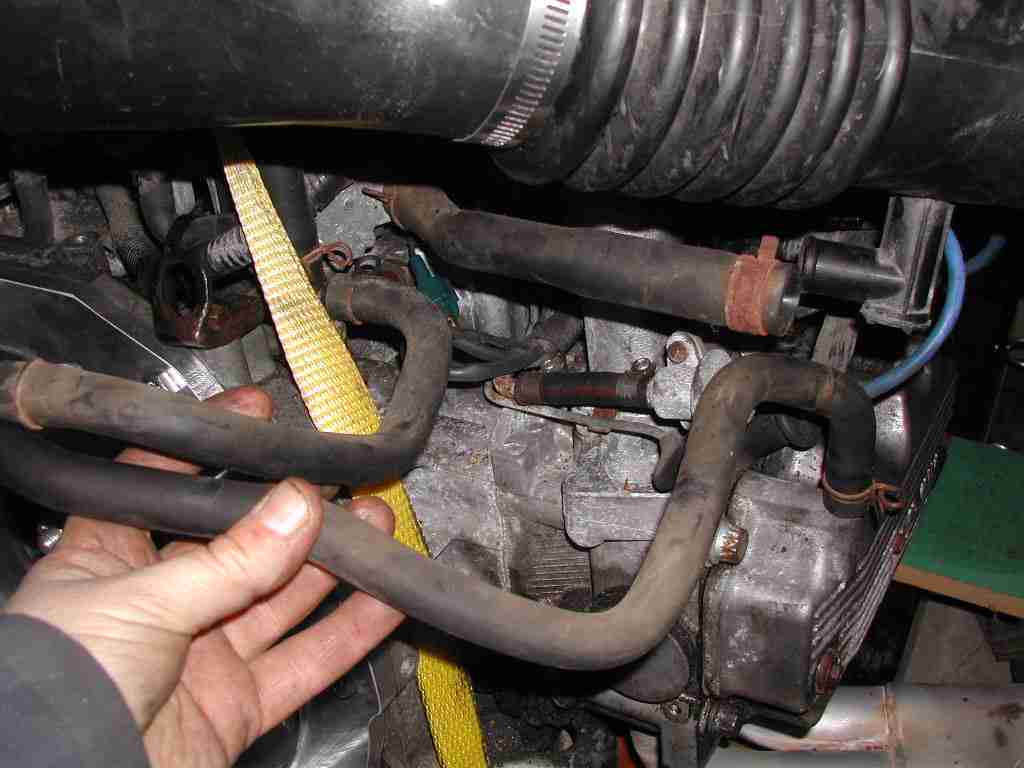

Here is another view of this connection. | |
 |

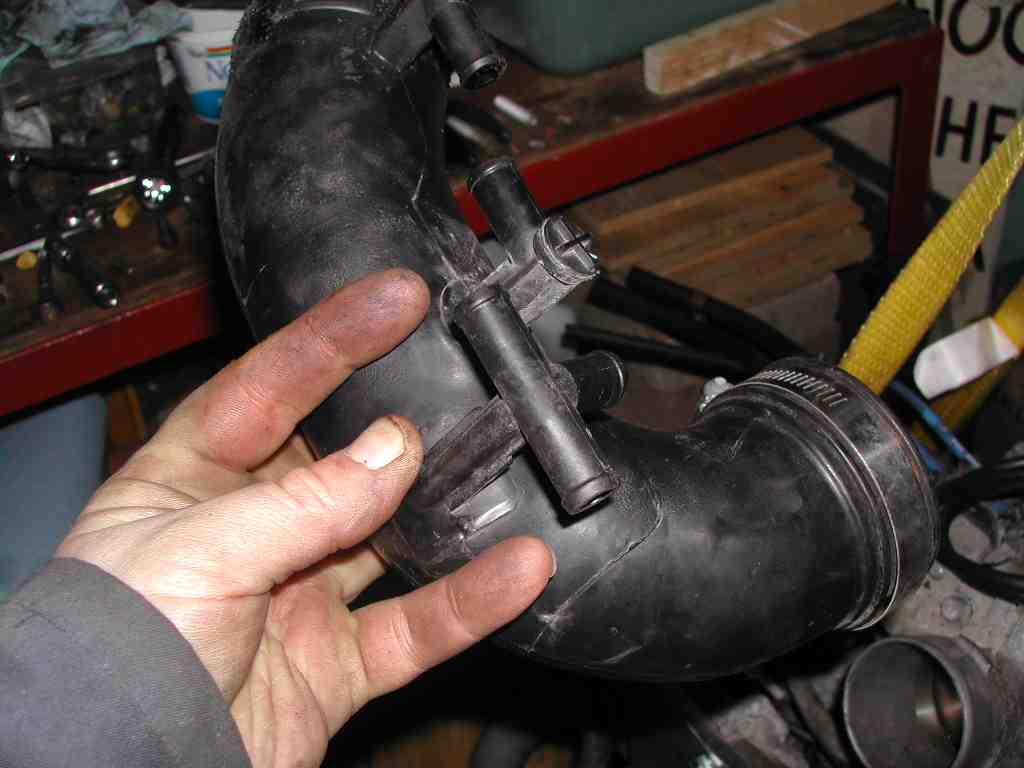

Remeber that T piece from the original Subaru air duct? | |
 |

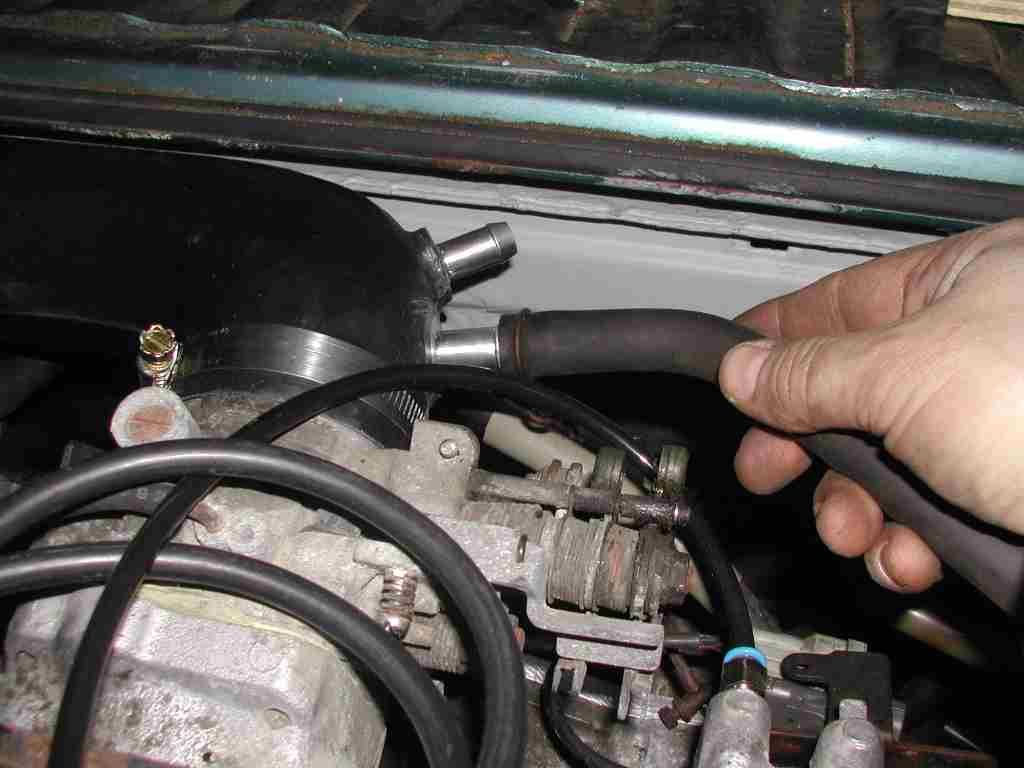

It has to be used to connect the crankcase ventilation and the driver's side valve ventilation. |
