cooling system
throttle intake

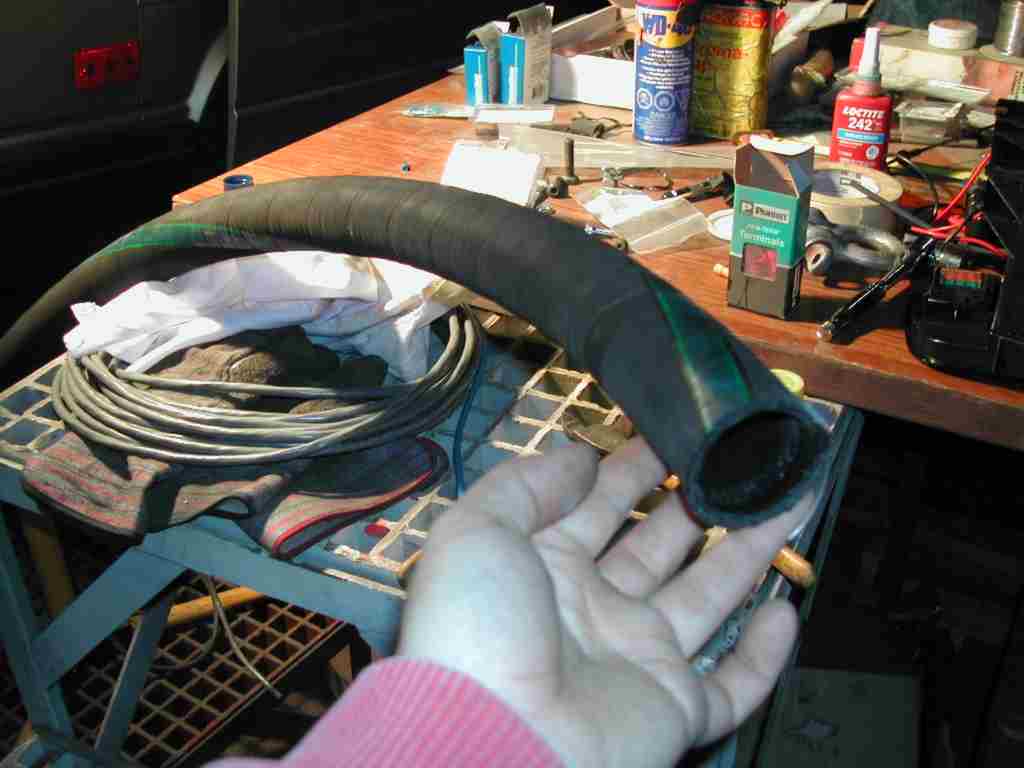

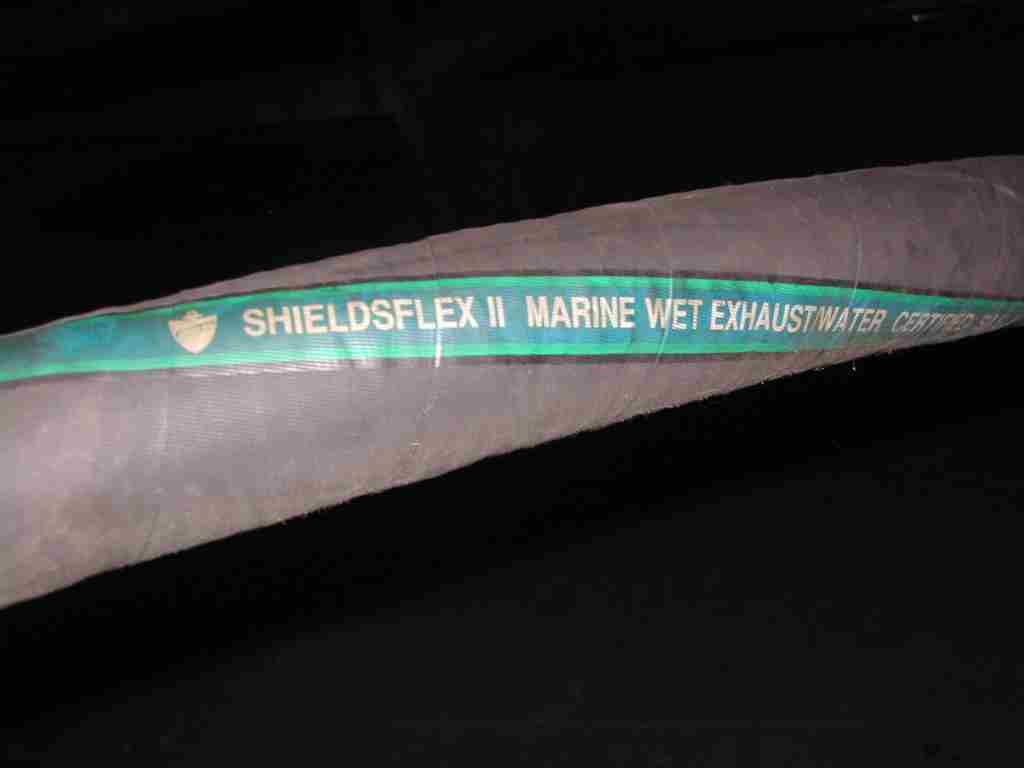

  I used marine hose named Shieldsflex II as my main coolant lines.
    Next ]
  It has a steel coil impregnated in the rubber which makes it very strong and bendable without kinking.

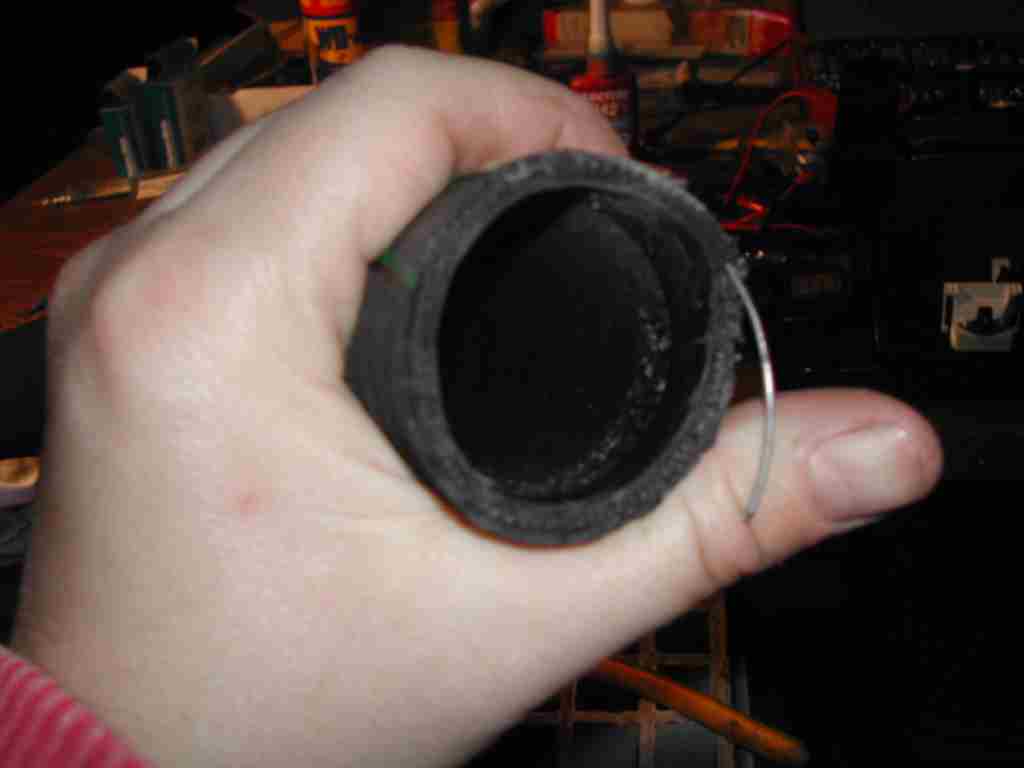

  See the steel coil sticking out.
  KEP recommends a T junction on the return line from the rad.

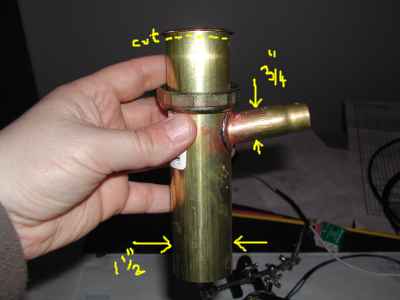

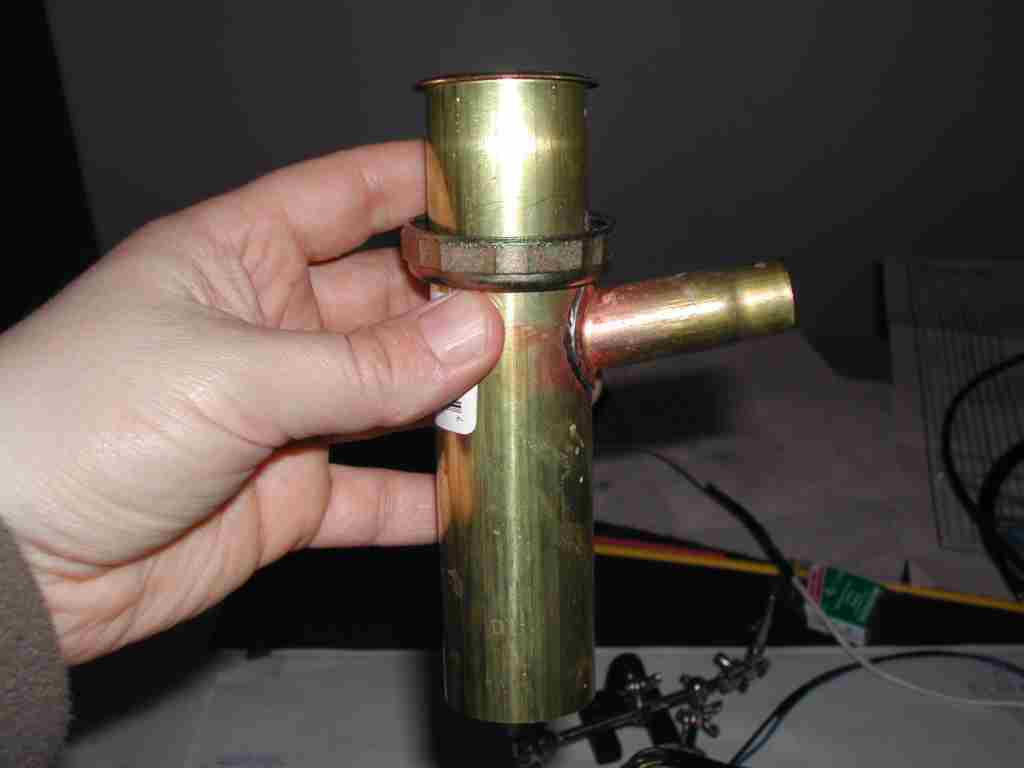

I used a brass junction used under kitchen sinks as dishwasher adapter (provides a side inlet).

I cut the top rim off as show in the picture.

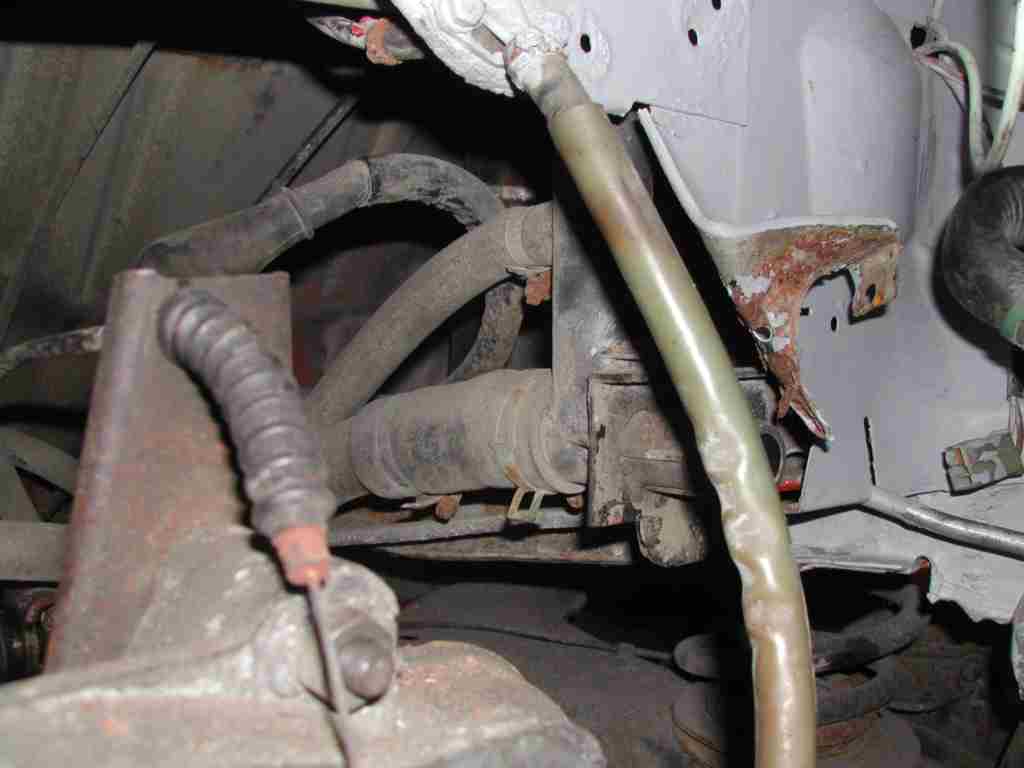

  The existing VW coolant distribution tower has to go.

Here I a starting to peel it away.  Its very thin metal.

That tube hanging down in the foreground is the gas feed line.
