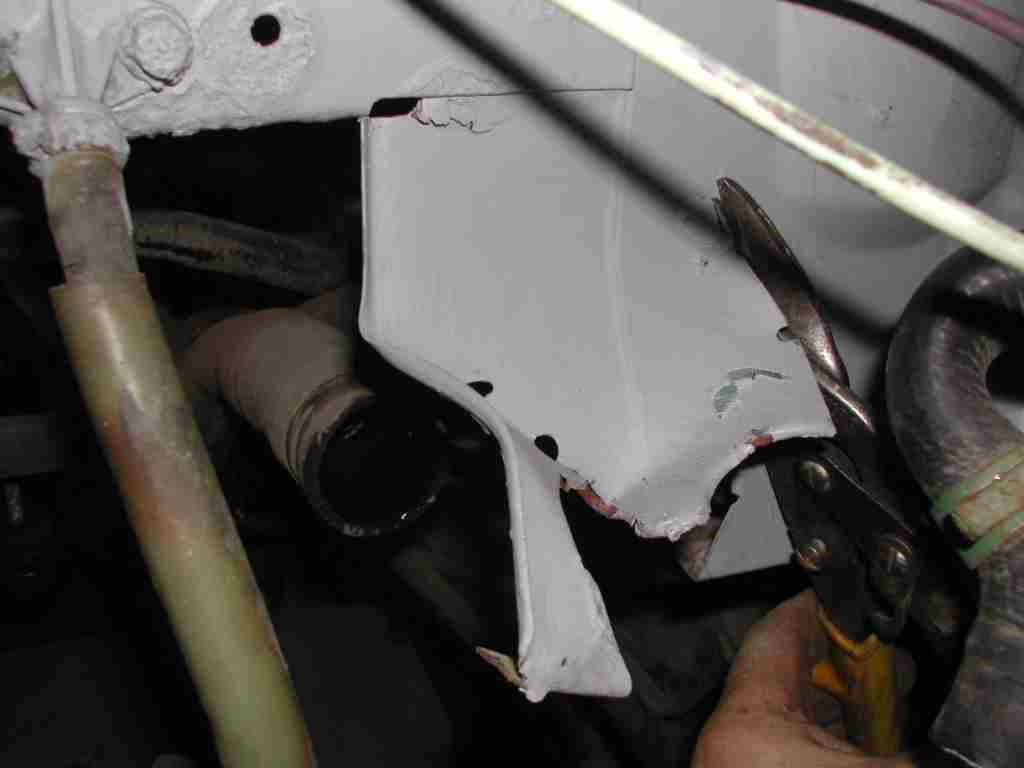

  Here is a shot of the exact cut I am making to the firewall.

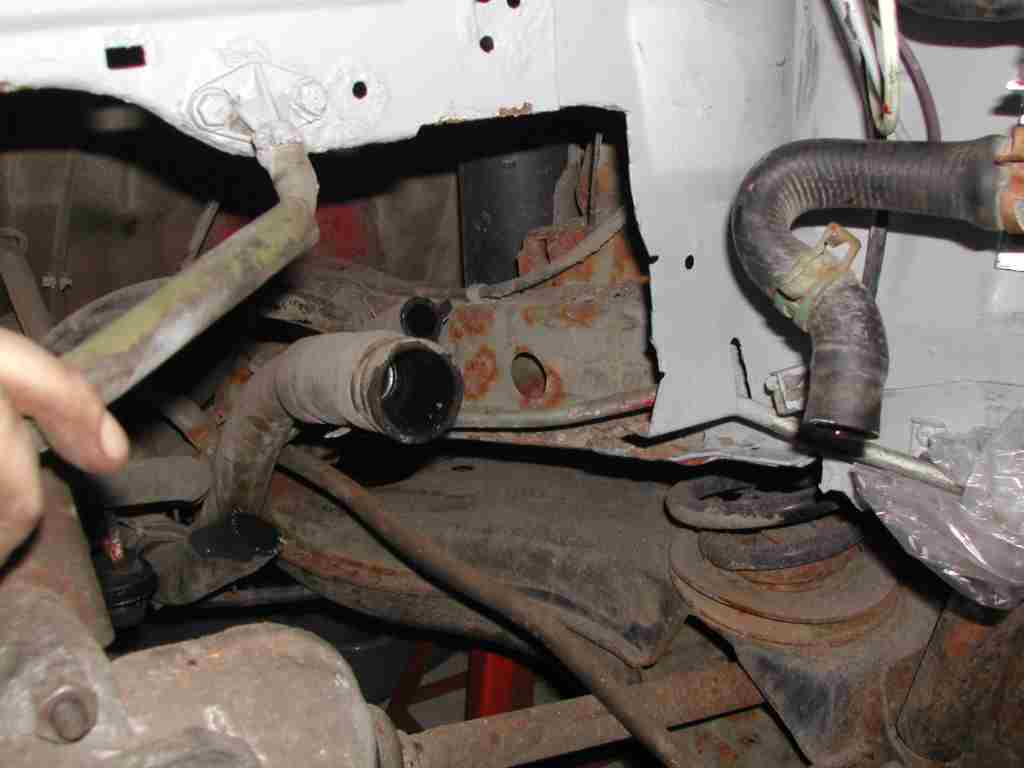

The coolant tower is gone as you can see,

    Back ] Next ]
  With part of the firewall out of the way I can now start to build the coolant system.

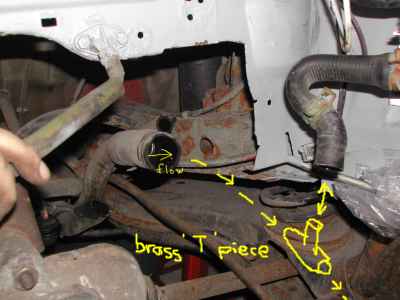

Imposed on this picture is the flow of the coolant and the use of the brass T junction.

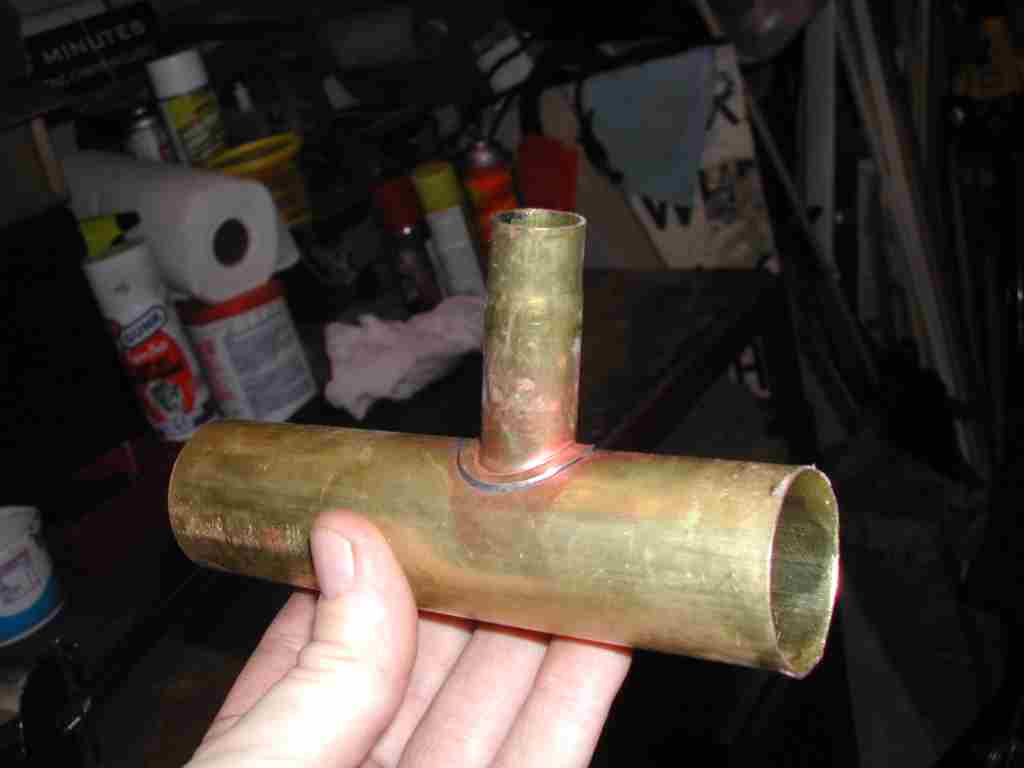

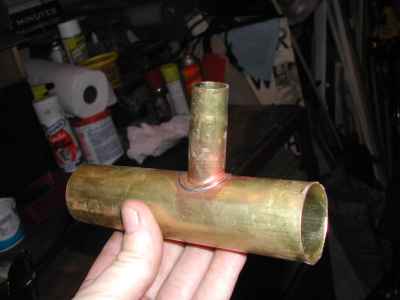

  Here again is that brass junction.  I got this at Home Depot for a few bucks.

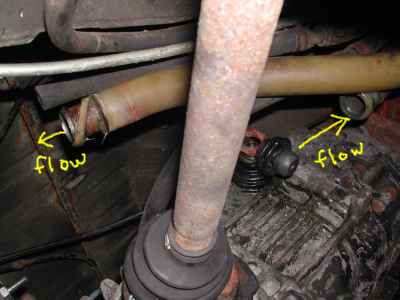

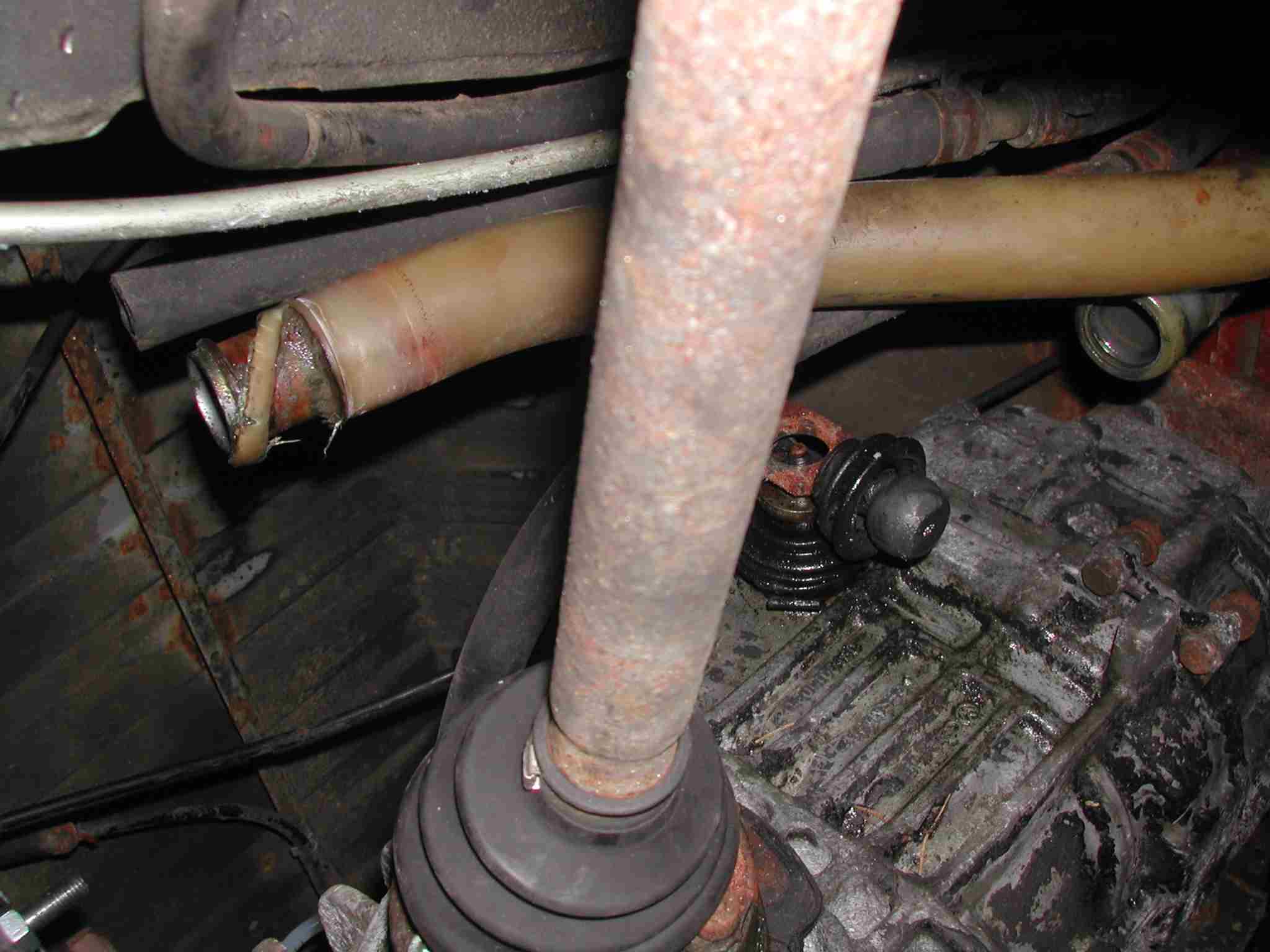

  Looking from under the van this is the flow of the coolant

The left part of the photo is towards the back of the van.

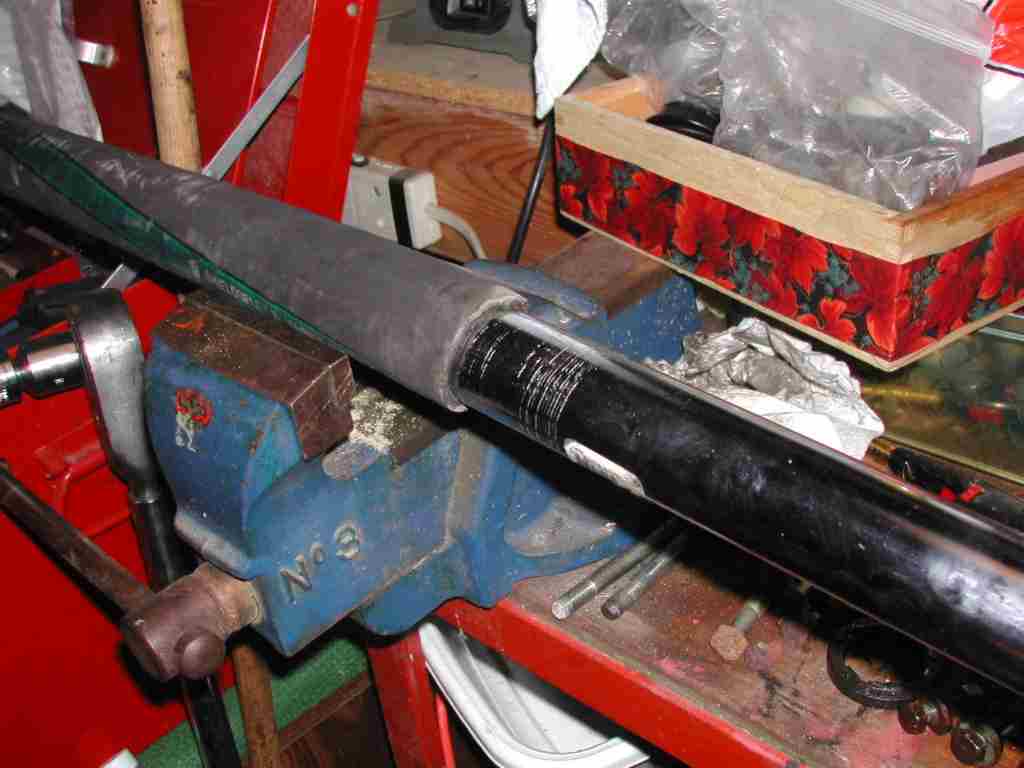

  For the flow out to the rad I used a 1.5" chrome pipe as my junction to the existing VW hose - the one that goes over the tranny.
