| pic of hanging pipe, left firewall (I'm looking for this file) | This picture show the chrome junction going through the cut firewall. It is suspended by heavy duty nylon ties.
|
|
 |

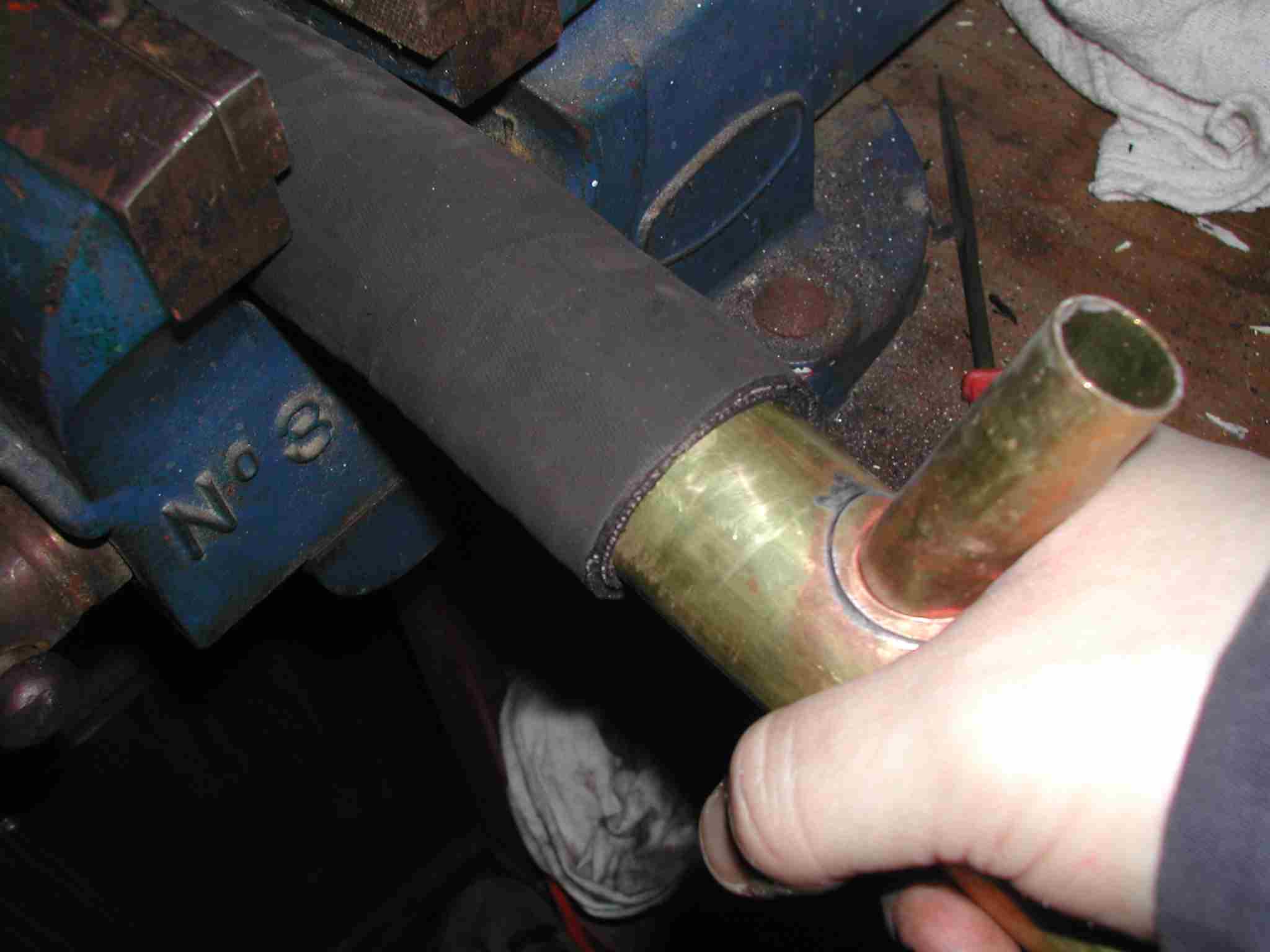

Here I am fitting the brass junction to the marine hose. Its a very, very tight fit. I had to use a vice to hold the hose in place while I pushed and twisted real hard. | |
 |

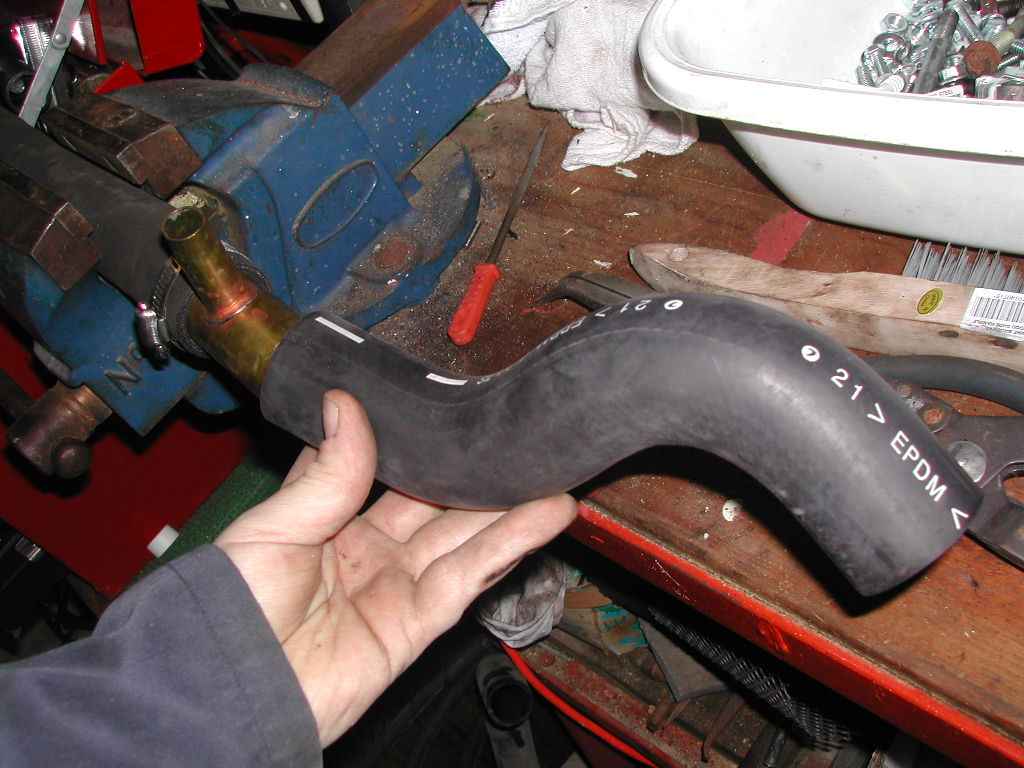

This is a generic hose I used on the other end of the junction. It will attach to the VW plastic line from the front. | |
 |

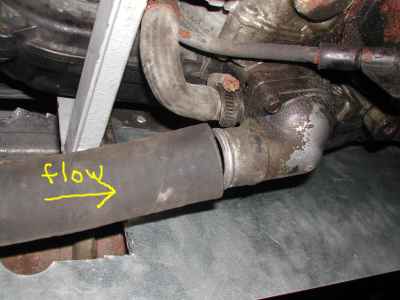

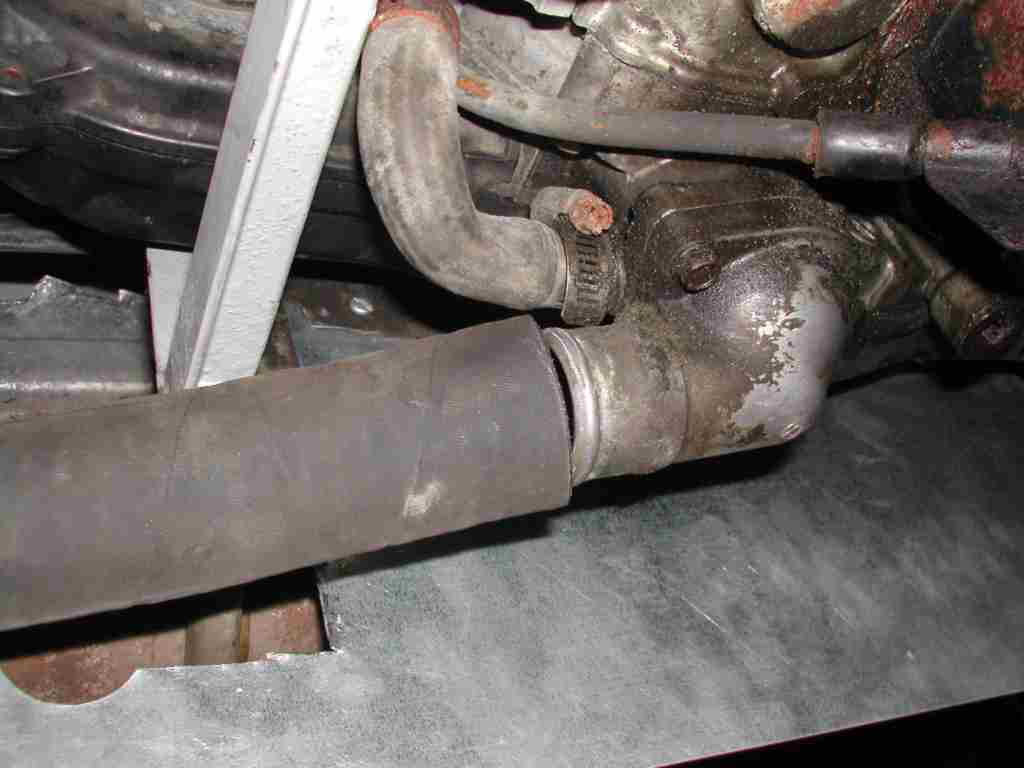

The marine hose goes on to the thermostat housing. Easy fit. I ended up using double pipe clamps on all connection where this kind of pipe was used. No leaks after a year of driving.
|
|
 |

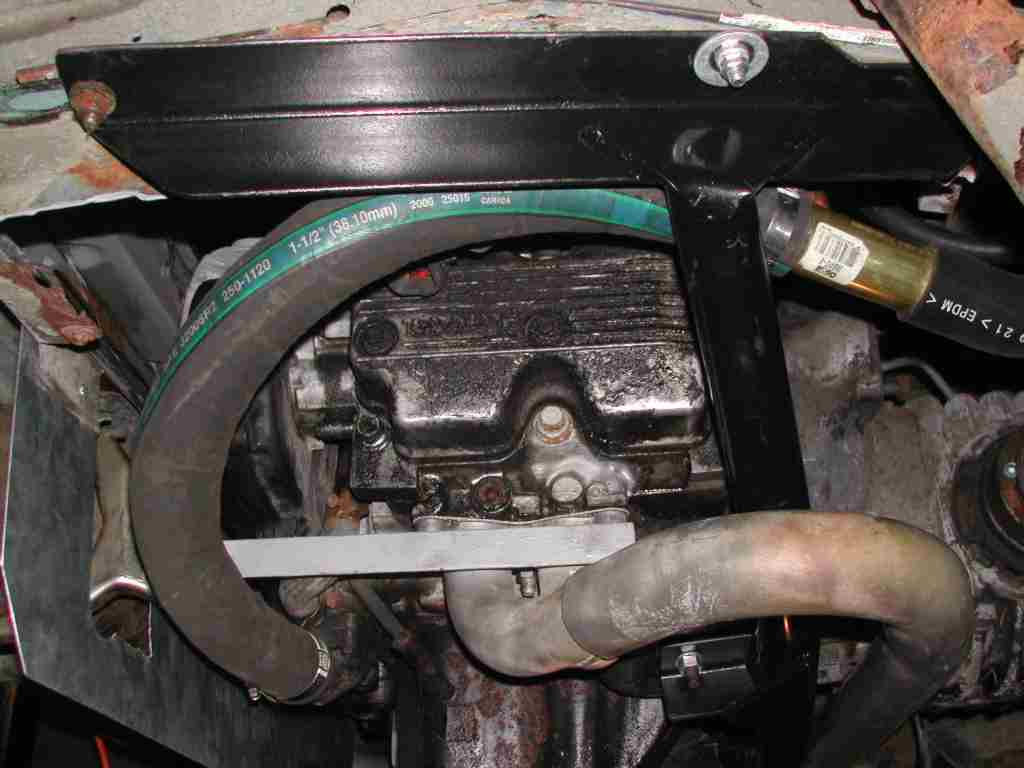

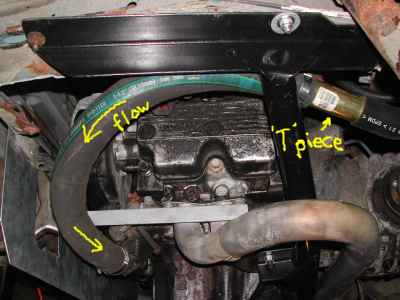

Here is a view from underneath - passenger side - back of van is the left side of photo. You can see the brass T junction and the flow of coolant to the thermostat housing.
|
|
